IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution

Brand Name:	IGREEN
Model Number:	WL6460
MOQ:	1set
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product Type:

Smart Greenhouse Control System / IoT Greenhouse Automation System

Control Technology:

PLC Programmable Logic Controller + IoT Cloud Management

Communication Method:

WiFi + 4G Wireless Connectivity

Control Interface:

7-inch Industrial Color Touchscreen HMI (10-inch Optional)

Environmental Monitoring Parameters:

Temperature, Humidity, Light Intensity, CO₂, Wind Speed, Wind Direction, Rain/Snow Status

Connected Equipment Control:

Ventilation, Shading, Cooling, Heating, Irrigation, Fertigation, Lighting And CO₂ Systems

Remote Management:

PC Web Platform + Mobile Remote Monitoring & Control

Protection Rating:

IP54 Outdoor Waterproof Control Cabinet With Surge & Overload Protection

Automation Level:

Automatic Climate Control & Unattended Greenhouse Operation

Operating Mode:

Manual Mode / Automatic Mode / Cloud Remote Mode

Packaging Details:

Packed by carton

Highlight:

IoT Smart Greenhouse Automation System

PLC-Based Greenhouse Climate Control

Remote Monitoring Greenhouse Solution

Product Description

IoT Smart Greenhouse Automation System | PLC-Based Climate Control & Remote Monitoring Solution

Product Overview

The Smart Greenhouse Control System is an integrated IoT management and control solution purpose-built for modern agricultural greenhouses. It integrates three core modules: comprehensive environmental sensing, intelligent control of all equipment, and cloud-based remote management.

The system provides unified automatic control over the full range of greenhouse production systems, including ventilation and environmental control, shading and thermal insulation, cooling and humidification, heating and supplemental lighting, irrigation and fertigation, and atmosphere regulation.

The system continuously acquires and monitors multi-dimensional environmental data both inside and outside the greenhouse—temperature, humidity, light intensity, CO₂ concentration, wind speed, and rain/snow status—and drives equipment to operate in intelligent, demand-based coordination.

Core System Components

Smart Cloud Control Distribution Box (Main Control Unit)

The intelligent control hub constructed from outdoor-grade rainproof cold-rolled steel with IP54 protection rating, ensuring stable operation under complex outdoor conditions.

Full-scope equipment access and control: Covers all greenhouse electromechanical equipment with customizable control logic.

Ventilation & Environmental Control: Roof/side roll-up vent windows, continuous roof vents, circulation fans, and axial exhaust fans
Shading & Thermal Insulation: External shade net system, internal shade system, internal thermal screen
Cooling & Humidification: Evaporative cooling pad-fan system, high-pressure misting cooling system
Heating System: Water-source heat pump, boiler heating, hot-air furnace heating
Irrigation & Fertigation: Drip irrigation system, sprinkler irrigation system, integrated fertigation machine
Supplemental Lighting: LED plant growth supplemental lights, high-pressure sodium supplemental lighting
Atmosphere Regulation: CO₂ generator, CO₂ supply solenoid valve
Auxiliary Systems: Greenhouse electric rolling doors, sliding doors, dehumidifiers

Dual travel protection mechanism: Mechanical limit switches and PLC software soft-limit dual over-travel protection.

Comprehensive electrical safety protection: Emergency stop button, surge and lightning protection, thermal overload protection.

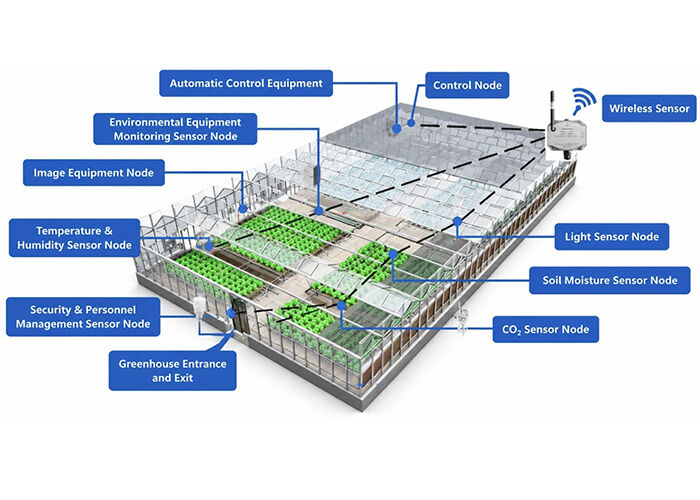

Environmental Sensing System

Provides comprehensive data for intelligent control, enabling automatic linkage between environmental parameters and equipment operation.

Outdoor Weather Station: Continuously acquires outdoor temperature, air humidity, light intensity, wind speed, wind direction, and rain/snow status.

Indoor Wireless Multi-Parameter Sensor: Collects core growth-environment data including indoor temperature, air humidity, light intensity, CO₂ concentration, soil moisture, and soil temperature.

IoT Cloud Management Platform

Supports multi-terminal, cross-space remote management with 3-year free basic function usage period.

PC Web: Visual display of real-time greenhouse environmental data, historical data trend curves, data statistics report export, remote equipment control.

Mobile Device: Convenient mobile access to real-time greenhouse environmental data and historical trend curves.

Connectivity: Supports dual-mode WiFi and 4G connectivity (4G data SIM card to be provided by the user).

Core Functional Features

Three Control Modes with Flexible Switching

Manual Mode: Local operation via cabinet touchscreen or physical buttons
Automatic Mode: Configurable scheduled operation strategies with environmental data linkage
Cloud Remote Mode: Internet-based remote monitoring and control from PC or mobile devices

Multi-Scenario Automatic Linkage Logic

Excessive Wind Speed: Automatically retracts shading system and closes ventilation side windows
Rainfall Detection: Automatically closes roof and side windows to prevent rainwater entry
Light Regulation: Automatically opens/closes shading system based on outdoor light intensity
Temperature & Humidity Linkage: Automatically adjusts ventilation to maintain optimal crop conditions

Comprehensive Safety Protection Mechanism

Thermal overload protection for each motor circuit
Dual protection of mechanical limit switches + PLC soft limits
Emergency stop button for one-touch power cutoff
Surge and lightning protection for outdoor operation

Technical Specifications

Category	Specification
Main Control Unit	PLC programmable logic controller
Enclosure	IP54 outdoor rainproof cold-rolled steel cabinet
HMI	7-inch (10-inch optional) color industrial touchscreen with customized greenhouse control system software
Control Capacity	Supports multi-channel motor forward/reverse control; compatible with synchronized / independent control modes
Protection Mechanisms	Thermal overload protection, dual limit protection, emergency stop protection, surge & lightning protection
Outdoor Weather Station	Measured parameters: temperature, humidity, light, wind speed, wind direction, rain/snow status
Indoor Sensor	Measured parameters: temperature, humidity, light, CO₂ concentration; built-in LCD display
Communication	WiFi / 4G dual-mode connectivity (4G data SIM card to be provided by user)
Cloud Platform Service	3-year free basic function period; supports PC + mobile access

Application Scenarios

Vegetable Cultivation Greenhouses: Large-scale cultivation of leafy and fruiting vegetables
Edible Mushroom Cultivation Greenhouses: Mushroom and fungus cultivation with zoned independent control
Flower & Seedling Propagation Greenhouses: Flower and seedling propagation with precise environmental management
Scientific Research Greenhouses: Agricultural research and variety trials with data logging capabilities

Delivery and Service Assurance

Delivery Scope

Complete distribution box unit (control program pre-flashed, factory commissioning completed)
Outdoor weather station and indoor sensor equipment
Electrical schematic diagrams and accompanying technical documentation
Cloud platform account activation and basic configuration service

Warranty Service

12-month hardware warranty for the complete unit (excluding damage caused by human factors or force majeure)
Platform technical support provided during the 3-year free basic cloud platform service period
Free remote video commissioning guidance
