Created with Pixso. 20m³ Portable Cold Storage Room | Mobile Walk-In Cooler

20m³ Portable Cold Storage Room | Mobile Walk-In Cooler

Brand Name: IGreen
Detail Information
Place of Origin:
Fujian
Dimensions:
4000mm (L) × 2000mm (W) × 3000mm (H)( Customazation Accepted)
Internal Volume:
Approx. 20 M³
Temperature Range:
Chiller (0°C To 10°C) / Freezer (-15°C To -25°C)
Insulation Panel:
100mm High-Density Cam-Lock Polyurethane (PU)
Mobility Kit:
Heavy-Duty Multi-Directional Casters With Integrated Brake
Refrigeration System::
Pre-charged Plug-and-Play Monoblock Unit
Flooring:
18mm Heavy-Duty Non-Slip Cement Fiber Board
Product Description
20m³ Portable Cold Storage Room | Mobile Walk-In Cooler
Product Overview

The 2m * 4m Portable Cold Storage Room is an all-in-one, highly versatile plug-and-play refrigeration solution engineered for small-to-medium cold storage operations. Designed with commercial-grade multi-directional heavy-duty casters, this mobile walk-in cooler/freezer eliminates the need for complex permanent civil engineering foundations, allowing you to deploy professional refrigeration exactly where you need it.

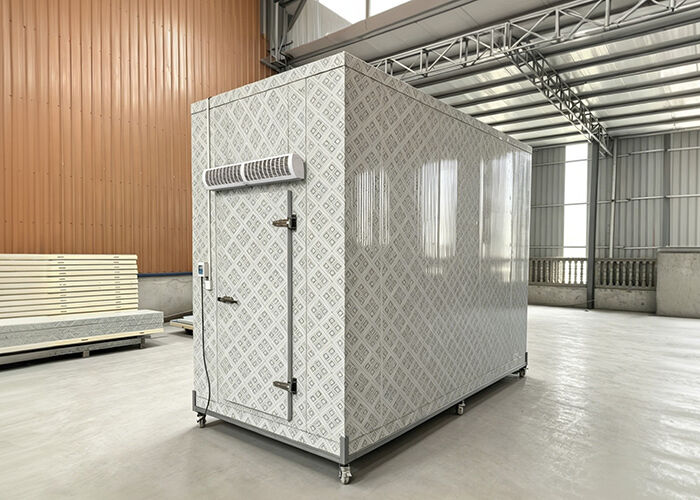

Portable cold storage room exterior view showing modular construction and mobility features

Whether for farm-gate pre-cooling, restaurant inventory management, or temporary cold-chain logistics, this mobile cold room delivers exceptional temperature control, high energy efficiency, and reliable long-term performance.

Key Specifications & Technical Parameters
Item Standard Configuration Remarks
External Dimensions 4000mm (L) * 2000mm (W) * 3000mm (H) Fully customizable dimensions
Internal Effective Volume Approx. 20 m³ Layout can be tailored
Temperature Range Chiller / Chilled Type: 0°C to 10°C
Freezer / Frozen Type: -15°C to -25°C
Ultra-low temperature versions available
Insulation Panels 100mm Polyurethane (PU) sandwich panels, double-sided color steel, Core Density ≥40kg/m³ 120mm / 150mm thickness options
Floor Construction 18mm Cement Fiber Board Heavy-duty, anti-slip, corrosion-resistant
Mobility Kit High-strength multi-directional casters with integrated brake system (Load Capacity ≥ 2 Tons) Smooth mobility and rock-solid locking
Refrigeration Unit Integrated monoblock drop-in refrigeration unit with premium brand compressor High energy efficiency ratio (EER)
Airflow Distribution High-efficiency unit cooler + Air curtain machine Uniform cooling, minimal thermal exchange
Control System Microcomputer digital thermostat (Auto-temp control, timed defrost, over-temperature alarm) Temperature precision: ±1°C
Power Requirements 220V / 380V, 50Hz (or customized per region) Grid-compatible based on location
Interior view of portable cold storage room showing insulation panels and flooring
Structural Design & Core Features
Modular High-Density PU Insulation Structure
The main structure features premium plug-in Polyurethane (PU) insulation panels utilizing an eccentric cam-lock system for rapid assembly and airtight sealing. Packed with high-density PU foam and reinforced with anti-corrosion double-sided panels, the thermal conductivity is exceptionally low. This structural design reduces cooling loss and lowers energy consumption by over 15% compared to traditional onsite builds, boasting a service life of over 10 years.
Flexible High-Mobility Engineering
Engineered with heavy-duty caster wheels and a robust industrial brake mechanism, this cold storage unit can be rolled across flat surfaces smoothly without digging trenches or pouring concrete foundations. When operational requirements change or space becomes limited, the entire cold room can be rapidly redeployed, making it an asset for multi-scenario use and temporary site management.
Heavy-Duty Anti-Slip Cement Fiber Floor
The interior flooring is built with a heavy-duty 18mm cement fiber board that safely handles high load capacities, foot traffic, and material carts. It provides a non-slip, wear-resistant surface that stands up to humid, high-moisture environments while remaining incredibly easy to clean and sanitize.
Heavy-Duty Cold Room Door with Safety Escape Lock
The custom-thickened insulated cold storage door is equipped with low-temperature resistant EPDM rubber gaskets for a reliable thermal break. For maximum operational safety, it integrates an internal safety escape release mechanism, allowing anyone inside to open the door easily in emergencies. The exterior features a rugged mechanical key-lock system to secure high-value inventory.
Close-up view of cold storage door with safety features and insulation
Advanced Refrigeration & Intelligent Control
  • Plug-and-Play Monoblock Refrigeration Unit: Featuring a highly integrated, pre-charged drop-in refrigeration system, it eliminates complex onsite piping and professional copper-welding. Factory tested and calibrated, it runs straight out of the box. Powered by top-tier brand compressors, the unit offers fast pull-down times, low vibration, and quiet operation.
  • Microcomputer Smart Thermostat: Take complete control with an intuitive digital interface that manages automated temperature control, scheduled smart defrost cycles, and instant system fault or over-temperature alerts—minimizing manual supervision.
  • Energy-Saving Air Curtain System: Positioned directly above the cold room door, the automatic air curtain creates a powerful, invisible air barrier whenever the door opens. This dramatically cuts down cold-hot air exchange, prevents inner condensation and frost buildup, and stabilizes the interior climate.
Refrigeration unit and control system components
Core Product Advantages
  • Zero Civil Infrastructure Required: Deploy immediate commercial refrigeration without civil construction permits, brick-and-mortar builds, or dedicated equipment rooms.
  • Exceptional Energy Efficiency & Low Opex: The combination of precision cam-lock PU panels, an integrated air curtain, and a high-EER monoblock unit ensures ultra-low daily operating costs.
  • Precise Climate Control for Ingress Security: Constant uniform airflow leaves zero thermal dead zones, protecting the quality of your perishables. Added security locks and safety releases give you total peace of mind.
  • Durable & Low-Maintenance Asset: Standardized components, reliable brand compressors, and anti-corrosive materials reduce downtime and ensure long maintenance intervals.
  • High Adaptability Across Markets: The adjustable temperature profile allows you to seamlessly switch between fresh produce preservation, meat freezing, and medical cold chain storage.
Mobile cold storage unit in operational environment
Typical Applications
  • Agriculture & Post-Harvest Processing: Instant farm-gate pre-cooling and short-term storage for fresh fruits, vegetables, mushrooms, and poultry to extend shelf-life before market transit.
  • HORECA & Commercial Kitchens: Ideal for restaurants, hotels, central kitchens, and fresh supermarkets requiring flexible backup cold storage for bulk ingredients.
  • Cold Chain Logistics & Hubs: Serves as a perfect localized micro-fulfillment center or e-commerce front warehouse for quick sorting and distribution without building permanent facilities.
  • Outdoor Events & Temporary Sites: Dependable mobile cooling for exhibitions, festivals, remote construction sites, and catering operations that require relocating equipment.
Premium Customization Services

Maximize your ROI with our custom-tailored upgrades:

  • Panel Upgrade: Double-sided SUS304 Stainless Steel insulation panels for aggressive, high-humidity, or chemical-heavy sanitization environments.
  • Enhanced Insulation: 120mm or 150mm ultra-thick PU panels for deep-freeze or extreme ambient climate conditions.
  • Smart Function Upgrades: Remote IoT temperature monitoring & cloud data logging, backup power generator hookups, heavy-duty interior LED lighting, and internal crash-proof corner guards.
  • Tailored Dimensions: Bespoke length, width, and height adjustments to fit your exact footprint or vehicle constraints.
